CLF OEM LiFePO4 EV Литийный аккумулятор 96V 120V 360V 100ah 200Ah Высоковольтный аккумулятор для грузовиков малого веса
Контактное лицо : Rosa Liu
Номер телефона : +86 18975107916
Что такое? : +8618975107916
| Количество мин заказа : | 2 шт. | Цена : | обсуждаемый |
|---|---|---|---|
| Упаковывая детали : | Деревянный корпус и короб | Время доставки : | 7-15 рабочих дней |
| Условия оплаты : | Т/Т | Поставка способности : | 10000 единиц в месяц |
| Место происхождения: | ХУНАН, Китай | Фирменное наименование: | Chalong Fly |
|---|---|---|---|
| Сертификация: | CE,ROHS,FCC,IEC62133,MSDS,UN38.3, UL, etc | Номер модели: | CLFLE218 |
|
Подробная информация |
|||
| Тип батареи:: | аккумулятор lifepo4 | Напряжение:: | 96 В |
|---|---|---|---|
| Емкость:: | 300Ач | Размер:: | Индивидуальные |
| OEM/ODM:: | Да | Транспортный пакет:: | Случай пены & переклейки |
| Водостойкость:: | IP67 | Код ТН ВЭД:: | 8507600090 |
| Функции:: | Эффективная по цене, быстрая доставка, стабильная структура | Приложение:: | электротранспорт, электрическая шлюпка, электрическая яхта, морской пехотинец |
Характер продукции

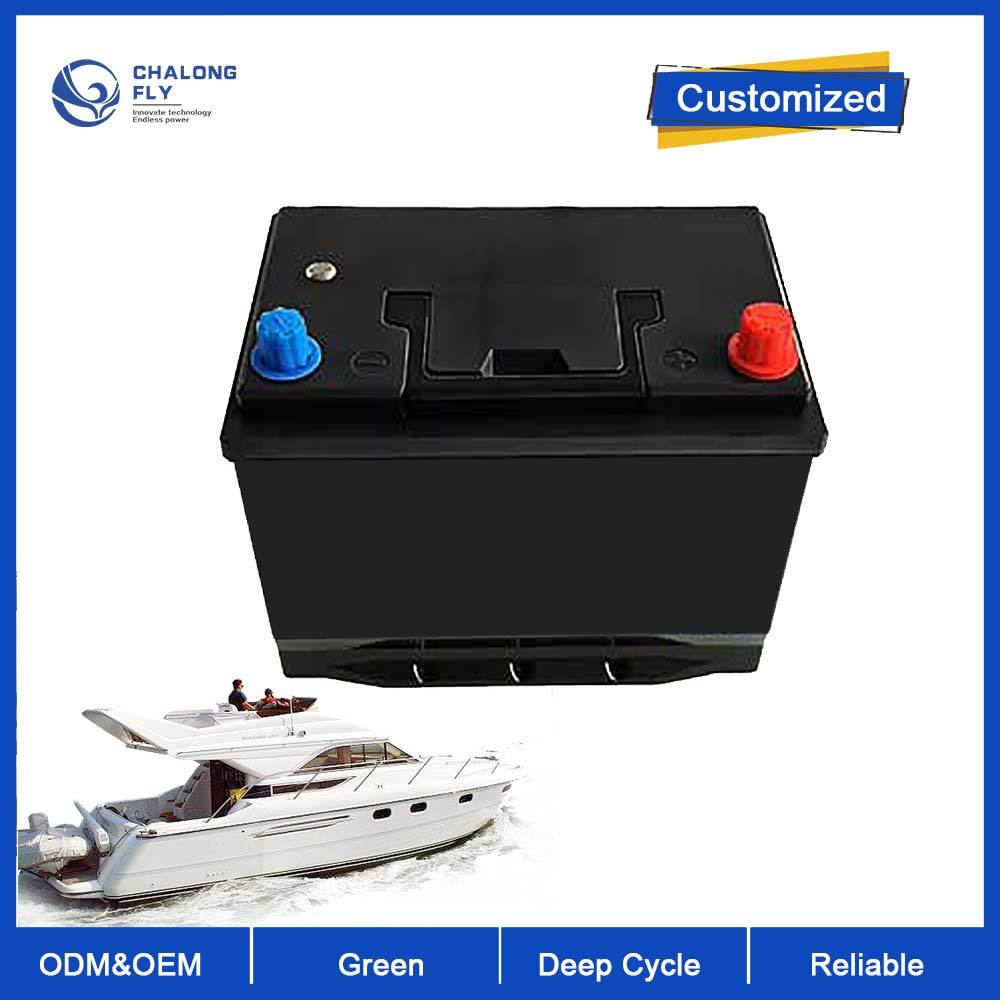

Tailor-made for yachts, fishing boats, sailboats and various other marine vessels, the 24V80Ah rated specification meets the power supply needs of multiple marine scenarios. Adopting LiFePO4 battery cells and built-in intelligent BMS management system, it balances safety protection and long-lasting battery life. With IP67 waterproof and dustproof, salt spray and vibration resistance, the lightweight design greatly reduces ship load. The maintenance-free feature lowers long-term operation costs, suitable for ship main power supply, auxiliary power supply and emergency power supply scenarios, creating a professional marine power supply solution.
Widely used in various civil and commercial marine vessels, including yachts, leisure boats, fishing boats, sailboats, work boats, sightseeing boats, marine law enforcement boats, etc. It can be used as the main power supply to power the ship's power system, as an auxiliary power supply to power fish finders, radars, GPS, marine lighting and communication equipment, and also as an emergency power supply to provide stable power for life-saving equipment and emergency start systems, suitable for polar, tropical and other marine environments.
| Specification Category | Details |
|---|---|
| Nominal Voltage | 24V DC |
| Nominal Capacity | 80Ah (0.2C, 25℃) |
| Cell Type | LiFePO4 (Lithium Iron Phosphate) |
| Cell Configuration | 8S4P (8 cells in series, 4 cells in parallel) |
| Continuous Discharge Current | 80A (1C) |
| Peak Discharge Current (3S) | 160A |
| Charging Voltage | 29.2V DC |
| Recommended Charging Current | ≤16A (0.2C) |
| Charging Temperature Range | 0℃ ~ 45℃ |
| Discharging Temperature Range | -20℃ ~ 60℃ |
| Storage Temperature Range | -20℃ ~ 50℃ (Recommended 50% SOC) |
| Cycle Life | ≥4000 cycles (at 25℃, 1C charge/discharge, remaining capacity ≥80%) |
| Waterproof Grade | IP67 |
| Vibration Resistance | Meets IEC 60092-350 Marine Vibration Standard |
| Salt Spray Resistance | Meets ASTM B117 Standard (48 hours no corrosion) |
| Housing Material | ABS + Aluminum Alloy (Optional) |
| Product Size (L×W×H) | 380×175×210mm (Customizable for specific marine compartments) |
| Net Weight | Approx. 12kg |
| BMS Function | Overcharge, Overdischarge, Overcurrent, Short Circuit, Overheat, Low Temperature, Cell Balancing Protection |
| Certifications | CE, FCC, RoHS, UN38.3, IEC 60092-350 |
| Warranty | 3 Years / 5 Years (Optional) |
| Terminal Type | Waterproof Copper Terminal (M8) |
| Working Humidity | 0% ~ 95% (Non-condensing) |
![]()
![]()
Contact us now to get exclusive quotes and customized installation solutions, enjoy large discounts for bulk purchases, and get full technical support and perfect after-sales service to help upgrade marine power supply!
A1: Yes, the 12V voltage is fully compatible with traditional lead-acid starting batteries. It can be directly installed without modifying marine electrical systems, offering lighter weight and superior starting performance.
A2: No, the product supports low-temperature discharge at -20℃, and the 1300CCA strong cranking current ensures instant starts in cold environments, making it suitable for use in cold sea areas.
A3: We recommend using a dedicated LiFePO4 charger (charging voltage 14.4V-14.6V) to prevent battery damage from overcharging. We can provide a dedicated charger as part of a complete set.
A4: Yes, the IP67 rating allows immersion in 1 meter of water for 30 minutes without water ingress. The casing features salt spray resistant coating to provide long-term protection against seawater corrosion.
